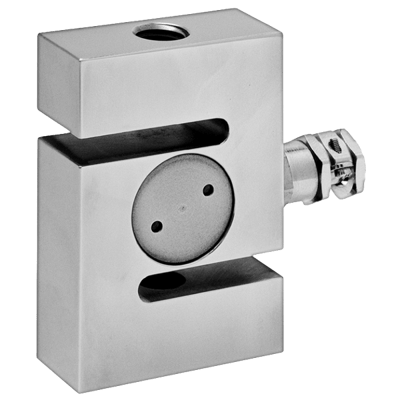

Model F2211 Tension/Compression Force Transducer
Brand: TecsisTension/compression force transducer with internal thread (S-type).
The model F2211 series can be used for tension and compression force measurements.
The load cell provides ideal conditions in the measuring ranges from 20 N to 50 kN.
Features- Measurement ranges 0 to 0.02 kN up to 0 to 50 kN
- Simple force introduction
- Robust design
- Simple installation
- Protection class IP60 (aluminum), IP67 (aluminum)
- Relative linearity error 0.1% Fnom
Specifications
Brand
Accuracy
- Tension Force: 0.1 % Fnom
- Tension Force: 0.2 % Fnom
Approvals & Certifications
- Calibration
- ISO 9001: 2015 Certified
Electrical Connectors
- Cable 3 m, 4-wire
Environmental Protection
- IP60 (up to 1 KN Aluminum)
- IP67 (From 2 KN Stainless Steel)
Excitation Voltage
- Rated Range: 2-12 Vdc, Max.
Insulation Resistance
- > 2 GigaOhms
Load Limit
- Breaking Force: > 300 % Fnom
- Force Limit: 150 % Fnom
Materials of Construction
- Stainless Steel, up to 1 KN Aluminum
Measuring Error
- Relative Error of Characteristic Value: 0.08 %
Measuring Range
- Rated Force: 0.02 to 50 KN
Operating Temperature
- -30° to 80° C (-22° to 176° F)
Output
- 0-10 V
- 4-20 mA
- Rated Output: 2 mV/V (1 mV/V with 0.02 KN)
Resistance
- Input/Output: 350 ohms
Stability
- Tension & Compression Force: 0.2 % Fnom
- Tension Force: 0.1 % Fnom
Storage Temperature
- -50° to 95° C (-58° to 203° F)
Supply Voltage
- 12-28 Vdc
Temperature Effect
- Temperature Effect on Characteristic Value: ≤ ± 0.04 %/10 K
- Temperature Effect on Zero Signal: ≤ ± 0.12 %/10 K
Temperature Range
- Rated Temperature Range: -10° to 70° C (14° to 158° F)
- Industrial Applications
- Measurement & Monitoring Facilities
- Plant Engineering
- Production Lines
- Special Equipment & Machinery Construction
- Test Bench Equipment
