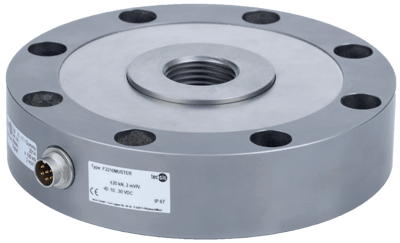

Model F2210 Tension/Compression Force Transducer
Brand: TecsisThe load cells of the model F2210 series have been designed to measure dynamic or static tension - and compression forces directly in the force line.
The available nominal loads range between 0.5 kN and 2,000 kN.
The special feature of those models are the high long-term stability, the low height and the low relative linearity error of 0.1 % Fnom.
Features- Measurement ranges 0 to 0.5 kN up to 0 to 2,000 kN
- Simple installation
- Low installation height
- Protection class IP60
- Relative linearity error 0.2% Fnom (0.05% Fnom optional)
Specifications
Brand
Accuracy
- Relative Error of Characteristic Value: ≤ ± 0.1 %
- Tension & Compression Force: ≤ ± 0.4 % Fnom (Optional ± 0.10 % Fnom)
- Tension Force: ≤ ± 0.2 % Fnom (Optional ± 0.05 % Fnom)
Applications
- Material Test Facilities
- Measurement
- Plant Engineering
- Production Lines
- Special Equipment & Machinery Construction
- Test & Monitoring Facilities
Approvals & Certifications
- CE
Approvals & Certifications
- ISO 9001: 2015 Certified
Electrical Connectors
- 6-Pin Plug (DIN 45322)
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP60
Excitation Voltage
- 2-12 Vdc, Max.
Insulation Resistance
- > 2 GigaOhms
Measuring Error
- Relative Creep, 30 minutes: ≤ ± 0.08 % Fnom (Optional ± 0.03 % Fnom)
Measuring Range
- 0.5 to 2,000 KN
Operating Temperature
- -10° to 70° C (14° to 158° F)
Output
- Output Signal (Rated Output): 2 mV/V
Repeatability
- Relative Repeatability Error in Unchanged Mounting Position: 0.08 % (Optional 0.03)
Resistance
- Input/Output Resistance: 350 ohms
Stability
- Tension & Compression Force: ≤ ± 0.4 % Fnom (Optional ± 0.10 Fnom)
- Tension Force: ≤ ± 0.2 % Fnom (Optional ± 0.05 Fnom)
Storage Temperature
- -30° to 95° C (-22° to 203° F)
Supply Voltage
- 12-28 Vdc (For Optional Integrated or Cable Amplifier mA/V)
Temperature Effect
- Temperature Effect on Characteristic Value: ≤ ± 0.07 %/10 K (Optional ± 0.05)
- Temperature Effect on Zero Signal: ≤ ± 0.05 %/10 K (Optional ± 0.03)
Temperature Range
- 0° to 60° C (32° to 140° F)
