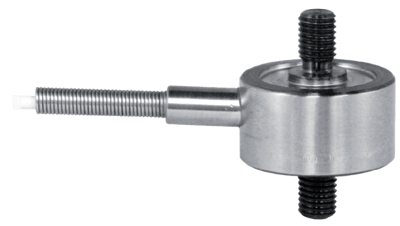

Model XLU68f Miniature Universal Load Cell
Brand: TecsisXLU68f load cell is a universal tension/compression miniature unit available in sizes from 0.75" to 1.38" in diameter.
This unit measures load ranges from 1,000 g to 10,000 lbs. and features 0.25% accuracy.
Built to survive harsh industrial environments with fully welded stainless steel construction.
Offered with English or metric threaded load connections.
Underwater cable is optionally available.
Features- Small size
- Tension/compression
- 0.25% accuracy
- Welded stainless construction
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 12
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Specifications
Brand
Accuracy
- 0.25%
Approvals & Certifications
- Calibration
- ISO 9001: 2015 Certified
Compensated Temperature
- 15° to 71° C (60° to 160° F)
Diameter
- 0.75 to 1.38" (19 to 35 mm)
Electrical Connectors
- 5 ft 4-Conductor Cable
Enclosure, Body Material
- Stainless Steel
Excitation Voltage
- 1,000 G to 10 lb: 5 Vdc
- 20 to 10,000 lb: 10 Vdc
Hysteresis
- 1,000 G to 250 lb: ± 0.15 % of FSO, Combined
- 500 to 10,000 lb: ± 0.2 % of FSO, Combined
Linearity
- 1,000 G to 250 lb: ± 0.15 % of FSO, Combined
- 500 to 10,000 lb: ± 0.2 % of FSO, Combined
Measuring Range
- 0 to 10,000 lb
Operating Temperature
- -54° to 121° C (-65° to 250° F)
Output
- 1,000 G: 1.5 mV/V Nominal
- 5 to 10,000 lb: 2 mV/V
Repeatability
- 1,000 G: ± 0.1 % of FSO
- 5 to 10,000 lb: ± 0.05 % of FSO
Resistance
- Bridge Resistance: 350 ohms (Foil)
Span & Zero Effect
- Span Effect: ± 0.005 % of Reading/°F
- Zero Effect: ± 0.005 % of FSO/°F
UNF/UNC Connection
- 1/2"-20 UNF Male
- 1/4"-28 UNF Male
- 10"-32 UNF Male
- 3/4"-16 UNF Male
- 3/8"-24 UNF Male
- 6"-32 Male UNC
Zero Balance
- ± 2 % of FSO
