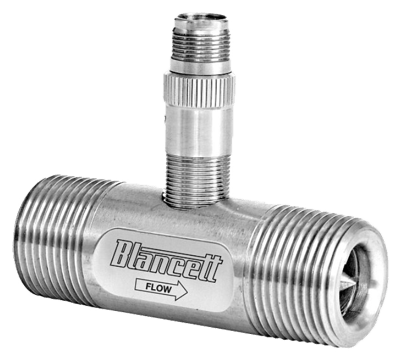

Model 1200 In-Line Turbine Flow Meter
Brand: Badger MeterThe Blancett® Model 1200 In-Line Turbine flow meter is engineered for applications in highly corrosive environments, including petrochemical and other process industries with liquid chemical flows.
The Blancett Model 1200 In-Line Turbine flow meter is expertly engineered to provide both accuracy and durability in aggressive industrial environments.
Features- Durable Design. Built with a 303 stainless steel body and internal wetted parts, with two type-440 stainless steel ball bearings
- Sustained Accuracy. Maintains measurement accuracy and mechanical integrity, even when measuring corrosive and abrasive liquids
- Cost-Effective Solution. Pairs with a Blancett flow monitor to meet a wide range of measurement requirements, making it ideal for pipelines, production/injection fields, mining operations, offshore facilities and other industrial applications
- Expert Engineering. Simple Installation
Specifications
Brand
Size Range
- 1/4 to 3/4 in. (6 to 19 mm)
Temperature Range
- -60 to 350° F (-51 to 177° C)
Flow Range
- 0.25 to 25 gpm (0.57 to 94.64 lpm)
Accuracy
- ± 1 %
Repeatability
- ± 0.1 %
Pressure Range
- Up to 4000 PSI (275 bar)
- Concrete Production & Consolidation
- Utility Water Treatment & Distribution
- Oil & Gas
- Process & General Industry
- Refining, Chemical & Petrochemical
