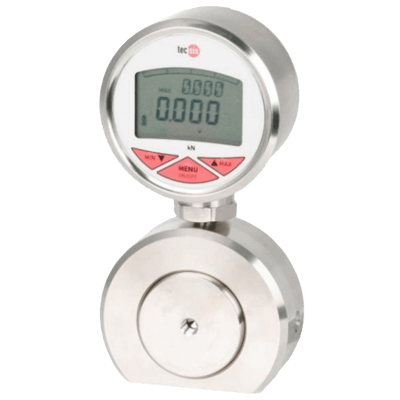

F1119/F1136 Clamping Force Transducer
Brand: Tecsis
Compact hydraulic compression force transducer to measure and display force in parallel clamps in an easy way for a reasonable price.
Hydraulic force measurement is an easy way to measure and display force in various applications.
The flattened housing enables a stable measuring in parallel clamps.
The force measurement utilizes the hydraulic principle: The force applied to a piston generates a hydraulic pressure, which is displayed with an indicating device.
The scale of the indicating device can show various units e.g. N, kN, kg, t.
Features- Stainless steel housing and piston
- Flattened housing for stable measuring
- Accuracy ±0.5% Full Scale with digital pressure gauge P3962 or pressure sensor P3276
- Accuracy ±1% to 1.6% of Full Scale with pressure gauge
- Operates without power supply
- Piston movement ≤ 0.5 mm
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 2
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Specifications
Brand
Accuracy
- ± 1 % to 1.6 % of Full Scale with Pressure Gauge
- Analog Display: ≤ ± 1.6 % of Full Scale at 21° C (69.8° F)
- Digital Display: ≤ ± 0.5 % of Full Scale at 21° C (69.8° F)
Applications
- Apparatus Engineering Equipment
- Force Measurement in Parallel Clamps
- Mechanical Engineering
- Test & Measurement Equipment
Diameter
- Nominal Diameter: 20 to 80 cm²
Display
- Analog
- Digital Display
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- Protection Typical (EN 60529 / IEC 529): IP65
Fluid
- Filling Fluid: Glycerin/Water 70 %
Load Limit
- 100 % (Dependent on Measuring Range)
- Breaking Load: > 130 % (Dependent on Measuring Range)
Measuring Range
- 0 to 500 KN
Piston Material
- Stainless Steel
Pressure Range
- psi: 23.2 to 8,702 (kPa: 160 to 60,000, bar: 1.6 to 600)
Pressure Type
- Gauge
Sensor, Probe Type
- Pressure Sensor
Temperature Range
- Nominal -10° to 50° C (14° to 122° F)
