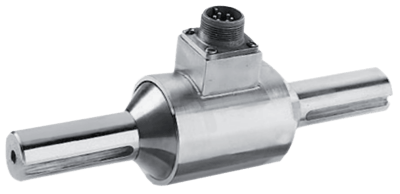

Model XTS100/XTS150 Shaft Mount Torque Transducer
Brand: TecsisThe XTS series in-line shaft mount reaction torque sensor is designed to fit shaft sizes from 1.00" to 1.50" and comes is two sizes to cover ranges from 600 in-lbs to 12,000 in-lbs.
This unit utilizes reliable foil strain gage bridge technology to provide ±0.20% linearity.
XTS provides bidirectional output and has no moving parts to wear out. Built for industrial applications with stainless steel construction.
Features- Reaction torque measurement
- Mounts in-line with large shafts
- High torque ranges available
- Stainless steel construction
- No rotating/moving parts
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 4
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Specifications
Brand
Approvals & Certifications
- ISO 9001: 2015 Certified
Compensated Temperature
- 15° to 71° C (60° to 160° F)
Electrical Connectors
- MS3102E-14S-6P Connector
Enclosure, Body Material
- Stainless Steel
Excitation Voltage
- 10 Vdc
- 15 Vdc, Max.
Hysteresis
- ± 0.1 % of FSO
Linearity
- ± 0.2 % of FSO
Load Limit
- Safe Overload: 150 % of Capacity
- Ultimate Overload: 300 % of Capacity
Measuring Range
- 0 to 12,000 in/lb
Operating Temperature
- -54° to 107° C (-65° to 225° F)
Output
- 2 mV/V Nominal
Repeatability
- ± 0.03 % of FSO
Resistance
- Bridge Resistance: 350 ohms
Span & Zero Effect
- Span Effect: ± 0.005 % of Reading/°F
- Zero Effect: ± 0.005 % of FSO/°F
Zero Balance
- ± 2 % of FSO
- Industrial Applications
