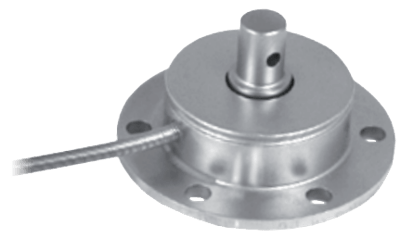

Model XTF375 Flange Mount Torque Transducer
Brand: TecsisModel XTF375 is a flange-mount reaction torque transducer built for industrial applications with a shaft size of 0.375".
This miniature torque sensor provides bidirectional output for ranges from 25 in-oz to 300 in-lbs.
Reliable foil strain gage bridge technology provides ±0.20% accuracy FSO (combined) and 2 mV/V output.
Rugged stainless steel construction with no moving parts to wear out. Compact design for easy integration.
Features- Reaction torque measurement
- Flange to shaft mount
- Low torque ranges available
- Stainless steel construction
- No rotating/moving parts
- Compact design
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 12
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Specifications
Brand
Accuracy
- ± 0.2 % of FSO
Approvals & Certifications
- ISO 9001: 2015 Certified
Compensated Temperature
- 15° to 71° C (60° to 160° F)
Electrical Connectors
- 4-Conductor Cable
Enclosure, Body Material
- Stainless Steel
Excitation Voltage
- 10 Vdc
- 15 Vdc, Max.
Hysteresis
- ± 0.2 % of FSO, Combined
Linearity
- ± 0.2 % of FSO, Combined
Load
- Safe Overload: 150 % of Capacity
- Ultimate Overload: 300 % of Capacity
Measuring Range
- 0 to 300 in/lb
Mounting
- Flange Mount
Operating Temperature
- -54° to 107° C (-65° to 225° F)
Output
- 2 mV/V Nominal
Repeatability
- ± 0.2 % of FSO, Combined
Resistance
- Bridge Resistance: 350 ohms
Size
- Shaft Size: 0.375" (9.5 mm)
Span & Zero Effect
- Span Effect: ± 0.005 % of Reading/°F
- Zero Effect: ± 0.005 % of FSO/°F
Zero Balance
- ± 2 % of FSO
- Industrial Applications
