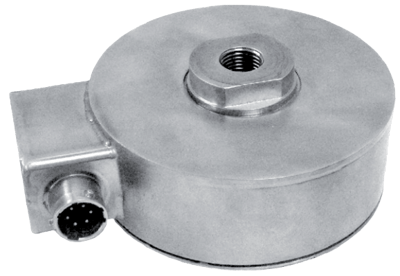

Model XLUL Universal Load Cell
Brand: TecsisModel XLUL universal tension & compression load cell utilizes reliable strain gauge technology to deliver ±0.1% Full ScaleO linearity over ranges from 500 to 5,000 lbs.
This compact 3.5" diameter low profile load cell features very low deflection and minimal sensitivity to extraneous forces.
Rugged welded construction for industrial applications with internal amplification and dual bridge designs available.
Features- Low profile
- Low deflection
- Low sensitivity to extraneous forces
- Rugged welded construction
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 4
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Specifications
Brand
Approvals & Certifications
- Calibration
- ISO 9001: 2015 Certified
Compensated Temperature
- 21° to 77° C (70° to 170° F)
Diameter
- 3.5" (88.9 mm)
Electrical Connectors
- PT02E-10-6P Connector or Equivelant
Enclosure, Body Material
- Stainless Steel
Excitation Voltage
- 10 Vdc
- 20 Vdc, Max.
Hysteresis
- ± 0.1 % of FSO
Insulation Resistance
- > 5,000 MΩ
Linearity
- ± 0.1 % of FSO
Measuring Range
- 0 to 5,000 lb
Operating Temperature
- -54° to 93° C (-65° to 200° F)
Output
- 3 mV/V
Repeatability
- ± 0.05 %
Resistance
- Bridge Resistance: 350 ohms
Span & Zero Effect
- ± 0.002 % of FSO/°F
- ± 0.0036 % of FSO/°C
UNF/UNC Connection
- 1/2"-20 UNF Female
Zero Balance
- ± 2 % of FSO
- Industrial Applications
