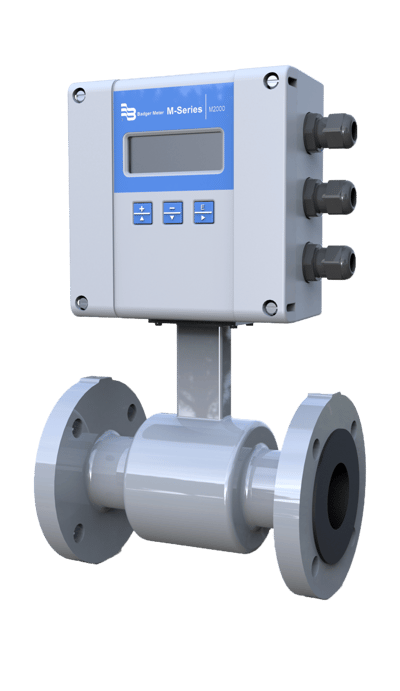

M2000 Electromagnetic Flow Meter
Brand: Badger MeterThe amplifier type ModMAG® M2000 is best suited for bidirectional flow measurement of fluids with a conductivity >5 μS/cm (>20 μS/cm for demineralized water).
ModMAG® M2000 shows a high accuracy, is easy to use and can be chosen for a large and flexible applications spectrum.
The ModMAG M2000 Electromagnetic flow meter has a wide selection of liner and electrode materials to help ensure maximum compatibility and minimum maintenance over a long operating period.
Features- Strict Accuracy Standards. Features sophisticated, processor-based signal conversion with accuracy of ±0.20% of rate ±1 mm/s with appropriate straight run. Delivers accuracy of ±1% with zero straight run required in applications with limited space.
- Enhanced Data Points. Offers BACnet MS/TP communication protocol, assuring seamless integration with building management systems (BMS), and is the first full-bore inline electromagnetic meter to complete the BACnet Testing Laboratories (BTL) Certification Program.
- Application Versatility. Measures water, wastewater, water-based fluids and other liquids with minimum electrical conductivity, making it suitable for a wide range of applications.
Specifications
Brand
Rating
- General Purpose
Size
- 6 to 1981 mm (1/4" to 78")
Temperature Range
- Up to 150° C (302° F)
Flow Range
- 0.03 - 12 m/s
- 0.10 to 39.4 ft/s (0.01 to 597,525 gpm)
Accuracy
- ± 0.2 %
Communication
- RS-232 Modbus RTU; RS-485 Modbus RTU, HART, Profibus DP, BACnet MS/TP, EtherNet/IP, Modbus TCP/IP and BACnet/IP
Power Supply
- 10-36 Vdc | 85-265 Vac
- Building Design, HVAC & Plumbing
- Utility Water Treatment & Distribution
- Oil & Gas
- Potable Water Billing
- Process & General Industry
Documentation
Application Data Sheets
- Connecting an Encoder Endpoint to M2000 Application Data Sheets - English pdf 204 KB
- ModMAG M2000 to M2000 Interchangeability Procedure Application Data Sheets - English pdf 107 KB
- ModMAG® Chemical Compatibility Chart Application Data Sheets - English pdf 240 KB
- ModMAG® Conductivity Chart Application Data Sheets - English pdf 131 KB
- ModMAG® M2000 Cable Splice Kit Application Data Sheets - English pdf 1,013 KB
- ModMAG® M2000 Connecting a Badger Meter Endpoint to the M2000 Application Data Sheets - English pdf 375 KB
- ModMAG® M2000 Modbus Memory Map Application Data Sheets - English pdf 685 KB
- ModMAG® M2000 PRIMO to M2000 Amplifier Upgrade Procedure Application Data Sheets - English pdf 363 KB
Brochures
Case Studies/White Papers
- Highway 71 Water District Case Studies/White Papers - English pdf 1,010 KB
- Measuring Flow With Zero Straight Run Requirements in Building Design, HVAC & Plumbing Case Studies/White Papers - English pdf 163 KB
- ModMAG M2000 - HK Stonecutter Island Sewage Plant in Hong Kong Case Studies/White Papers - English pdf 477 KB
- ModMAG M2000 Electromagnetic Flow Meter - Lake Hévíz in Hungary Case Studies/White Papers - English pdf 1.1 MB
- University of California, Merced Case Studies/White Papers - English pdf 85 KB
Certifications & Approvals
- ACS Certificate MagMeter PTFE Liner Certifications & Approvals - English/French pdf 181 KB
- CSA Certificate of Conformance - ModMAG M2000 Ordinary Location Certifications & Approvals - English pdf 54 KB
- Health Compliance Certificate Certifications & Approvals - French pdf 2.4 MB
- ModMAG Hygiene Certificate Certifications & Approvals - Polish pdf 1.4 MB
- ModMAG® M2000 BACnet Conformance Certificate BTL-30848 Certifications & Approvals - English pdf 689 KB
- ModMAG® M2000 BACnet Conformance Certificate Certifications & Approvals - English pdf 704 KB
- ModMAG® M2000 ODVA Declaration of Conformity Certifications & Approvals - English pdf 167 KB
- State of Kansas Approved Meter List Certifications & Approvals - English pdf 281 KB
- State of Kansas MAG Meter M1000 M2000 and M5000 Approval Certifications & Approvals - English pdf 529 KB
Manuals & Guides
- Heat Calculator Model 212 - English pdf 1.2 MB
- ModMAG M2000 Resistor Kit Manuals & Guides - English pdf 433 KB
- ModMAG® M2000 BACnet MS/TP Communication Protocol Manuals & Guides - English pdf 2.4 MB
- ModMAG® M2000 BACnet/IP Communication Protocol Manuals & Guides - English pdf 3.6 MB
- ModMAG® M2000 Data Logging Manuals & Guides - English pdf 559 KB
- ModMAG® M2000 Electromagnetic Flow Meter Manuals & Guides - English pdf 4.0 MB
- ModMAG® M2000 Firmware Update Procedure Manuals & Guides - English pdf 163 KB
- ModMAG® M2000 HART Bi-Directional Communication Protocol Data Access Manuals & Guides - English pdf 1.3 MB
- ModMAG® M2000 Manuals & Guides - Russian pdf 1.5 MB
- ModMAG® M2000 Manuals & Guides - Slovak pdf 1.6 MB
- ModMAG® M2000 Modbus TCP/IP Communication Protocol Manuals & Guides - English pdf 2.9 MB
- ModMAG® M2000 Software Manuals & Guides - English pdf 403 KB
- ModMAG® M2000 Store/Restore Feature Manuals & Guides - English pdf 121 KB
- ModMAGs® M2000 Profibus DP Manuals & Guides - English pdf 1.9 MB
Parts Lists
Product Data Sheets
- Heat Calculator Model 212 Product Data Sheets - English pdf 534 KB
- Magnetically Inductive Flowmeter ModMAG® M2000 Product Data Sheets - Slovak pdf 644 KB
- ModMAG® Electromagnetic Amplifier Type M2000 Product Data Sheets - Turkish pdf 640 KB
- ModMAG® M1000, M2000 and M5000 Field Verification Device Product Data Sheet - English pdf 164 KB
- ModMAG® M2000 Configuring Input/Output (I/O) Product Data Sheets - English pdf 94 KB
- ModMAG® M2000 Electromagnetic Converter Product Data Sheets - Polish pdf 612 KB
- ModMAG® M2000 Electromagnetic Flow Meters Product Data Sheets - English pdf 917 KB
