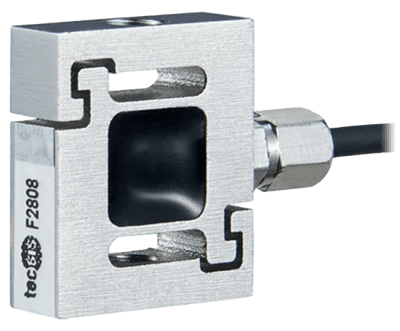

Model F2808 Tension/Compression Force Transducer
Brand: TecsisA miniature s-type tension/compression force transducer for dynamic measurement tasks.
Features- Measurement ranges 0 to 5 N up to 0 to 2,000 N
- Tension and compression force transducer with metal foil strain gauge technology and overload protection
- Ultracompact build size
- Stainless steel
Specifications
Brand
Approvals & Certifications
- ISO 9001: 2015 Certified
Electrical Connectors
- Cable Ø 2 x 3,000 mm (M3, M4), Cable Ø 2 x 3,000 mm (M8)
Electrical Protection
- Overload Protection
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP66
Excitation Voltage
- 10 V
- Maximum
Insulation Resistance
- > 5 GigaOhms / 100 Vdc
Load Limit
- Breaking Force: 300 % Fnom
- Force Limit: 150 % Fnom
Measuring Error
- Relative Deviation of Zero Signal: ± 2 %
- Relative Linearity Error: 0.15 %
- Relative Reversibility Error, in Unchanged Mounting Position: 0.1 %
Measuring Range
- 5 to 2,000 N
Operating Temperature
- -20° to 80° C (-4° to 176° F)
Output
- Output Signal: 2 mV/V
Resistance
- Input/Output Resistance: 350 ohms ± 30 / ± 5
Temperature Range
- -10° to 60° C (14° to 140° F)
- Hoppers Scale
- Industrial Applications
- Industrial Measuring System
- Pull & Push Dynamometers
- Riveting Machine
- Welding Machines
