Tecsis OEM S-Type, Model XLSR
Images are representations only.

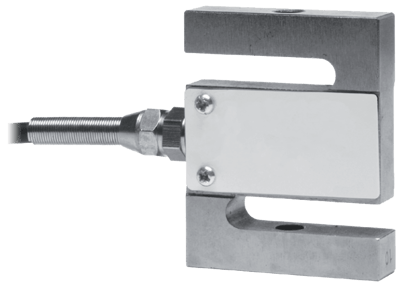

Model XLSR OEM S-Type

Brand: Tecsis

Model XLSR load cell is a high accuracy 'S-type' unit created specifically for the OEM market. With popular sizes from 2.4" to 7" tall, the XLSR covers a wide range of application requirements.

Ranges from 50 to 20,000 lbs. are available, with linearity and hysteresis of ±0.02% Full ScaleO and repeatability of ±0.01% Full ScaleO.

Standard output is 2.7 to 3.3 mV/V, with internal amplification also available.
Features
  • High accuracy
  • Stainless steel construction
  • For measuring bidirectional forces
  • Economically priced for OEM application

Displaying prices & availability for Ohio, United States in CAD. Change location.

Models matching criteria: 8
XLSR-0500
view description
  • Capacity - 500 lbs
Out of Stock
Does not ship to OH, United States
XLSR-002K
view description
  • Capacity - 2,000 lbs
Out of Stock
Does not ship to OH, United States
XLSR-0200
view description
  • Capacity - 200 lbs
Out of Stock
Does not ship to OH, United States
XLSR-005K
view description
  • Capacity - 5,000 lbs
Out of Stock
Does not ship to OH, United States
XLSR-0050
view description
  • Capacity - 50 lbs
Out of Stock
Does not ship to OH, United States
XLSR-001K
view description
  • Capacity - 1,000 lbs
Out of Stock
Does not ship to OH, United States
XLSR-010K
view description
  • Capacity - 10,000 lbs
Out of Stock
Does not ship to OH, United States
XLSR-0100
view description
  • Capacity - 100 lbs
Out of Stock
Does not ship to OH, United States

Specifications

Brand

Approvals & Certifications

  • Calibration
  • ISO 9001: 2015 Certified

Cable Material

  • 20" PVC

Compensated Temperature

  • -10° to 40° C (14° to 104° F)

Enclosure, Body Material

  • 630 Stainless Steel (17-4 PH)

Excitation Voltage

  • 10 Vdc
  • 15 Vdc, Max.

Hysteresis

  • ± 0.02 % of FSO, Combined
  • ± 0.03 % of FSO for 50 lb

Insulation Resistance

  • 5 GigaOhms at 50 Vdc

Linearity

  • ± 0.02 % of FSO Combined
  • ± 0.03 % of FSO

Measuring Range

  • 0 to 20,000 lb

Operating Temperature

  • -54° to 93° C (-65° to 200° F)

Output

  • 2.7 mV/V
  • 3.3 mV/V

Repeatability

  • ± 0.01 % of FSO

Resistance

  • Bridge Resistance: 350 ± 3.5 ohms (Output)
  • Bridge Resistance: 390 ± 15 ohms (Input)

Span & Zero Effect

  • Span Effect: ± 0.0008 % of Reading/°F
  • Zero Effect: ± 0.0015 % of FSO/°F

UNF/UNC Connection

  • 1"-14 UNF Female-2B
  • 1/2"-20 UNF Female-2B
  • 1/4"-28 UNF Female-2B
  • 1-1/4"-12 UNF Female-2B
  • 3/4"-16 UNF Female-2B

Zero Balance

  • ± 1 % of FSO

  • OEM Applications
