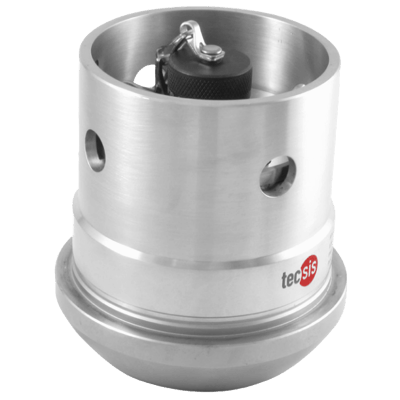

Model 1502 Hammer Union Pressure Transducer
Brand: TecsisThe 1502 Hammer Union pressure sensor is CSA, ATEX, and IECEx Approved and designed for a wide variety of drilling and well servicing applications.
Ruggedly constructed to stand up to the rigors of cementing, choke and kill operations, BOPs, and hydraulic fracturing in shale oil and shale gas formations.
Features- 4-20 mA 2-wire output
- Zero and span adjustment
- All stainless construction
- High accuracy
- Wide operating temperature
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 4
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Specifications
Brand
Accuracy
- ± 0.25 % of Full Scale BFSL
Applications
- Drilling & Well Servicing Applications
Approvals & Certifications
- ATEX
- CE
- CSA
- FM
- IEC Ex
Approvals & Certifications
- ISO 9001: 2015 Certified
Burst Pressure
- 3 x Full Scale 22.5 K psi, Max.
Compensated Temperature
- 5° to 60° C (40° to 140° F)
Electrical Connectors
- Binder
- MS3102E14S-5P Connector
- MS3102E14S-6P Connector
- MS3102E14S-7P Connector
- PT02E-10-5P Connector
- PT02E-10-6P Connector or Equivelant
- PT02E-8-4P Connector
Enclosure, Body Material
- Inconel X-750
Environmental Protection
- Intrinsically Safe
- IP66
- NEMA 4
Excitation Voltage
- 10-28 Vdc
Hysteresis
- ± 0.25 % of FSO BFSL
Insulation Resistance
- ≥ 100 MΩ
Linearity
- ± 0.25 % of FSO BFSL
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Output
- 16 mA ± 1 % of FSO
- 4-20 mA, 2-Wire
Pressure Range
- bar: 0 to 1,379
- kPa: 0 to 137,895
- psi: 0 to 20,000
Pressure Type
- Static Pressure
Proof Pressure
- 1.5 x Full Scale (22.5 K psi, Max.
Repeatability
- ± 0.25 % of FSO BFSL
Span & Zero Effect
- Span Effect: ± 0.01 % of Reading/°F
- Zero Effect: ± 0.01 % of FSO/°F
Wetted Materials
- Inconel X-750
Zero Balance
- 4 mA ± 1 % of FSO
