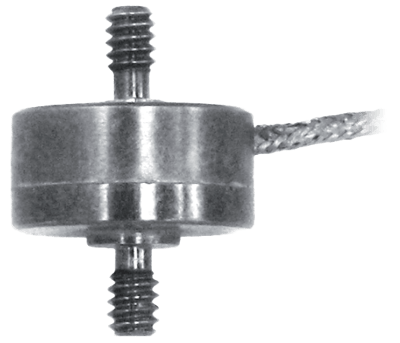

Model XLUS88 SubMiniature Universal Load Cell
Brand: TecsisSub-miniature load cell Model XLUS88 is a bidirectional tension/compression unit for ranges as low as 150 grams up to 1,000 lbs.
Compact size of only 0.50" to 0.75" in diameter, this unit delivers linearity of ±0.50% Full ScaleO.
Installation is via threaded connections on each end.
Built to survive harsh industrial environments with stainless steel construction and operating temperature range from -53° to 121.1° C (-65° to +250° F).
Metric threads are optionally available.
Features- Very small size
- Tension/compression
- Stainless construction
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 6
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Specifications
Brand
Approvals & Certifications
- Calibration
- ISO 9001: 2015 Certified
Compensated Temperature
- 15° to 71° C (60° to 160° F)
Diameter
- 0.5 to 0.75" (12.7 to 19 mm)
Electrical Connectors
- 4 Twisted Teflon Conductors
Enclosure, Body Material
- Stainless Steel
Excitation Voltage
- 5 Vdc
Hysteresis
- ± 0.5 % of FSO
Linearity
- ± 0.5 % of FSO
Load
- Safe Overload: 150 % of Capacity
- Ultimate Overload: 300 % of Capacity
Measuring Range
- 0 to 1,000 lb
Operating Temperature
- -54° to 121° C (-65° to 250° F)
Output
- 1,000 G: 1.5 mV/V
- 150 to 500 G: 10 mV/V
- 2,000 G to 1,000 lb: 2 mV/V
Repeatability
- ± 0.1 % of FSO
Resistance
- Bridge Resistance 1,000 G to 1,000 lb: 350 ohms (Foil)
- Bridge Resistance 150 to 500 G: 500 ohms (Semiconductor)
Span & Zero Effect
- Span Effect: ± 0.02 % of Reading/°F
- Zero Effect: ± 0.01 % of FSO/°F
UNF/UNC Connection
- 1/4"-28 UNF Male
- 4"-40 Male UNC
Zero Balance
- ± 2 % of FSO
