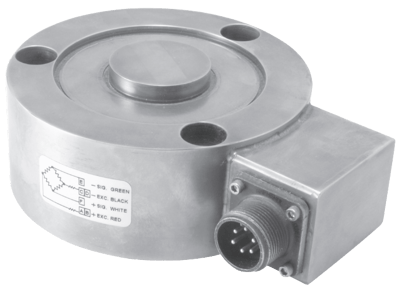

Model XLPC Compression Pancake Load Cell
Brand: TecsisModel XLPC load cell is a low range, compression pancake design.
Ranges from 25 to 10,000 lbs are offered in the same 2.26" diameter footprint for easy integration into new or existing applications.
Popular low profile design for all sorts of testing and control uses and available with tension plates, overload stops, fatigue rating, and multiple bridge designs.
Standard output is 3 mV/V (±0.25% of FSO), with internal amplification also available.
Features- Compression only
- High accuracy
- Compact size
- All capacities in one envelope
- Ease of installation
- Welded stainless construction
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 3
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Specifications
Brand
Approvals & Certifications
- ISO 9001: 2015 Certified
Compensated Temperature
- 15° to 71° C (60° to 160° F)
Diameter
- 2.26" (57.4 mm)
Electrical Connectors
- Bendix PTIH-10-6P or Equal
- Integral Cable
Enclosure, Body Material
- 630 Stainless Steel (17-4 PH)
Excitation Voltage
- 10 Vdc
- 15 Vdc, Max.
Hysteresis
- 3,000 lb & Below: ± 0.12 % of FSO
- Above 3,000 lb: ± 0.1 % of FSO
Linearity
- 3,000 lb & Below: ± 0.13 % of FSO
- Above 3,000 lb: ± 0.1 % of FSO
Measuring Range
- 25 to 10,000 lb
Operating Temperature
- -54° to 127° C (-65° to 260° F)
Output
- 3 mV/V ± 0.25 % of FSO
Repeatability
- ± 0.05 % of FSO
Resistance
- Bridge Resistance: 350 ohms
Span & Zero Effect
- On Span Effect: ± 0.0035 % of Reading/°F
- On Zero Effect: ± 0.0025 % of FSO/°F
Zero Balance
- ± 1 % of FSO
