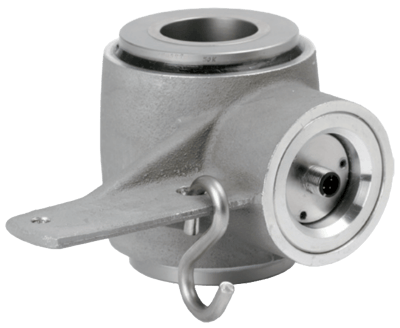

Model XLDR Polished Rod Load Cell
Brand: TecsisCustom designed compression load cell to monitor the polished rod forces of oilfield pump off control systems.
Model XLDR is fatigue rated to 50,000,000 cycles and available in ranges from 30,000 to 50,000 lbs.
Engineered for rugged outdoor use with hermetic construction and shock and vibrations protection.
The lightweight cast aluminum body resists off-axis loading and is available in the industry-standard mounting configuration to be easily incorporated into new or existing pump-off control applications.
Features- Supplied with set of spherical washers
- Cable with mating connector supplied
- High resistance bridge available
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 2
Out of Stock
Does not ship to OH, United States
Out of Stock
Does not ship to OH, United States
Specifications
Brand
Approvals & Certifications
- Calibration
- ISO 9001: 2015 Certified
Approvals & Certifications
- CE
Compensated Temperature
- -18° to 65° C (0° to 150° F)
Electrical Connectors
- Molex
Excitation Voltage
- 5-15 Vdc
Hysteresis
- ± 0.5 % of FSO, Combined
Insulation Resistance
- 1 MΩ
Linearity
- ± 0.5 % of FSO, Combined
Load Limit
- Safe Overload: 200 % of Capacity
Measuring Range
- 0 to 50,000 lb
Operating Temperature
- -40° to 80° C (-40° to 175° F)
Output
- 2 mV/V Nominal
Repeatability
- ± 0.5 % of FSO, Combined
Resistance
- Bridge Resistance: 700 ohms Nominal
Span & Zero Effect
- Span Effect: ± 0.02 % of Reading/°F
- Zero Effect: ± 0.05 % of FSO/°F
Zero Balance
- ± 1 % of FSO
- Pump-Off Control
