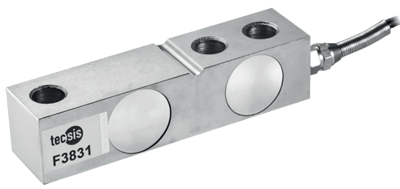

Model F3831 Shear Beam Load Cell
Brand: TecsisShear beam load cell made of stainless steel for scales and other industrial weighing systems.
Features- Measurement ranges 0 to 500 kg up to 0 to10,000 kg
- Shear beam load cell made of alloy steel/stainless steel
- High long-term stability
- High side load tolerance
Specifications
Brand
Approvals & Certifications
- ISO 9001: 2015 Certified
Enclosure, Body Material
- Stainless Steel
- Steel
Environmental Protection
- IP65 (< 500 kg)
- IP67 (≥ 500 kg)
Excitation Voltage
- 10 V
- Maximum
Insulation Resistance
- ± 5,000 MΩ, 100 V
Load Limit
- Breaking Force: 200 % Fnom
- Force Limit: 150 % Fnom
Measuring Error
- Relative Deviation of Zero Signal: ± 2 %
- Relative Linearity Error, Reversibility, Repeatability Error in Unchanged Mounting Position: ± 0.03 %
Operating Temperature
- -20° to 80° C (-4° to 176° F)
Output
- Rated Output: 2 mV/V ± 1 % (3 mV/V ± 1 % Optional)
Resistance
- Input Resistance: 385 ± 10 ohms
- Output Resistance: 350 ± 5 ohms
Temperature Effect
- Zero Signal & on Characteristic Value: < ± 0.025 %/10° C
Temperature Range
- -10° to 60° C (14° to 140° F)
- Batching Scales
- Floor Scales
- Industrial Weighing Systems
- Weigh Feeders
