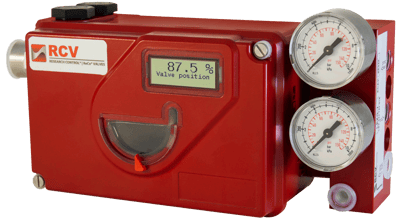

SRD991 RCV Intelligent Valve Positioner
Brand: Badger MeterThe top-mounted SRD991 digital positioner is integral with the Type 766 actuator, spring opposed diaphragm actuator designed specifically to fit the Research Control Valve body-bonnet assembly.
The unique positioner is compatible for both the ¼ in. and ½ in. actuator.
Specifications
Brand
Temperature Range
- -40° to 176° F (-40° to 80° C)
Display
- Multilingual Graphical LCD with full text display
Range
- 0.3 to 10.2" (8 to 260 mm) with Standard Lever
Documentation
Application Data Sheets
- Chemical Compatibility Chart Application Data Sheets - English pdf 439 KB
- RCV Control Valves TB-886 Packing Arrangements, Standard and Optional Application Data Sheets - English pdf 136 KB
- RCV Control Valves TB-887 Innervalve Guiding Styles Application Data Sheets - English pdf 147 KB
- RCV SRD991 Valve PositionsSupplied with Natural Gas Application Data Sheets - English pdf 454 KB
- RCV Type REK Packing System, Styles 1A through 3C Application Data Sheets - English pdf 313 KB
- RCV Valves Trim Identification Application Data Sheets - English pdf 491 KB
Forms
Manuals & Guides
- Attaching Top-Mounted SRD-991 Valve Positioners to 0.25 and 0.5 in Actuators Manuals & Guides - English pdf 10.0 MB
- Multi-language Research Control® Valve Pictorial Manuals & Guides - English pdf 2.8 MB
- RCV Models BLRA and TLDA Valve Positioners Manuals & Guides - English pdf 654 KB
- RCVcalc Valve Sizing Software Manuals & Guides - English pdf 91 KB
- Research Control® Valves Manuals & Guides - English pdf 1.8 MB
